AVSA
Output
Analog 0.1 to 10.0 VDC
Encoder Connections Per Smart Arm
[2] short cables (150 mm long) with M12, 4 Pin Male Connectors
Mechanical Description

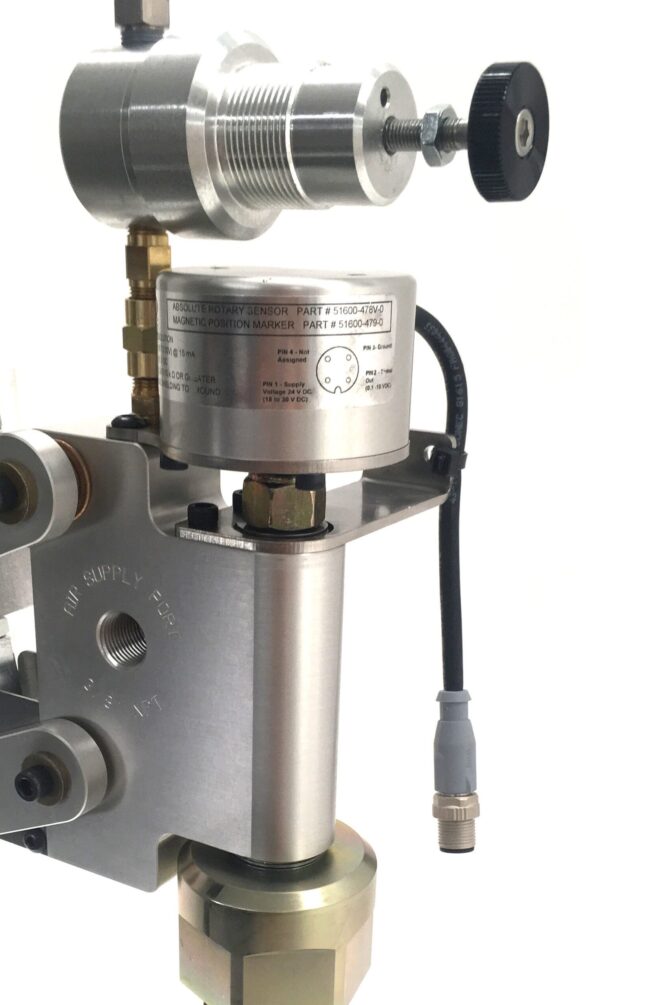

Hall Effect – Encoder. No moving sensor parts. Mechanically Decoupled from Tool Arm Shafts (No shaft coupler). Unlimited life.
PLC I/O Requirement
1 input per encoder
Absolute Resolution
12 bit (4096)
Repeatability (Each Encoder)
0.10⁰
Measuring Range
360⁰
Input Supply Voltage (24 VDC Nominal)
18 – 30 VDC
Input Supply Current
15mA per Encoder, 30 mA total
Controller Load
10kΩ or greater
