Tool Holders

Any ETA Tool Holder will mount on any ETA Torque Arm. This enables you to repurpose your arm to drive fasteners with different tools or in different attitudes (direction of drive). Please note that while any tool holder on this page will fit on any frame size, it might not always be practical due to weight limitations of the arm or the torque output of your tool. Consult with us, referring to your arm’s Serial Number, if you aren’t sure about repurposing your ETA arm for your new application. The Serial Number is located on the Forearm’s nameplate.

TOOL HOLDER MOUNTING DETAILS

At the tool end of every standard ETA Forearm is a through hole with 1/4 NPT threads top and bottom and also a threaded 1/4-20 blind hole on the bottom edge, 1.0″ on center behind the NPT hole. All of our holders have a 1/8″ deep pocket that the Forearm sits into. A 3/8″ cap screw with a hardened flat washer drops down through the 1/4 NPT hole in the Forearm and threads into the holder body. A 1/4-20 cap screw comes up through the holder into the blind hole in the bottom of the Forearm. At any time the holder can be removed and replaced with a different holder.

N

No Tool Holder

No Tool Holder

Tool Holder Weight

0 lb (0 Kg)

More Information
'}}

UV

Universal Vertical

For fastening Vertically with any inline tool from 1-⅛″ (28.6mm) to 2.0″ (50.8mm) diameter. UV is 1.0" thick for stability.

Tool Holder Weight

0.8 lb (0.4 Kg)

More Information
'}}

TUV

Thin Universal Vertical

For fastening Vertically with any inline tool. Identical to UV except it is only 0.540” (13.7mm) thick for tools with less clamping area.

Tool Holder Weight

0.5 lb (0.2 Kg)

More Information
'}}

RAV

Right Angle Vertical

For Right Angle tools driving fasteners downward or upward. Set Screw allows 12 different handle positions.

Tool Holder Weight

1.6 lbs (0.7 Kg)

More Information
'}}

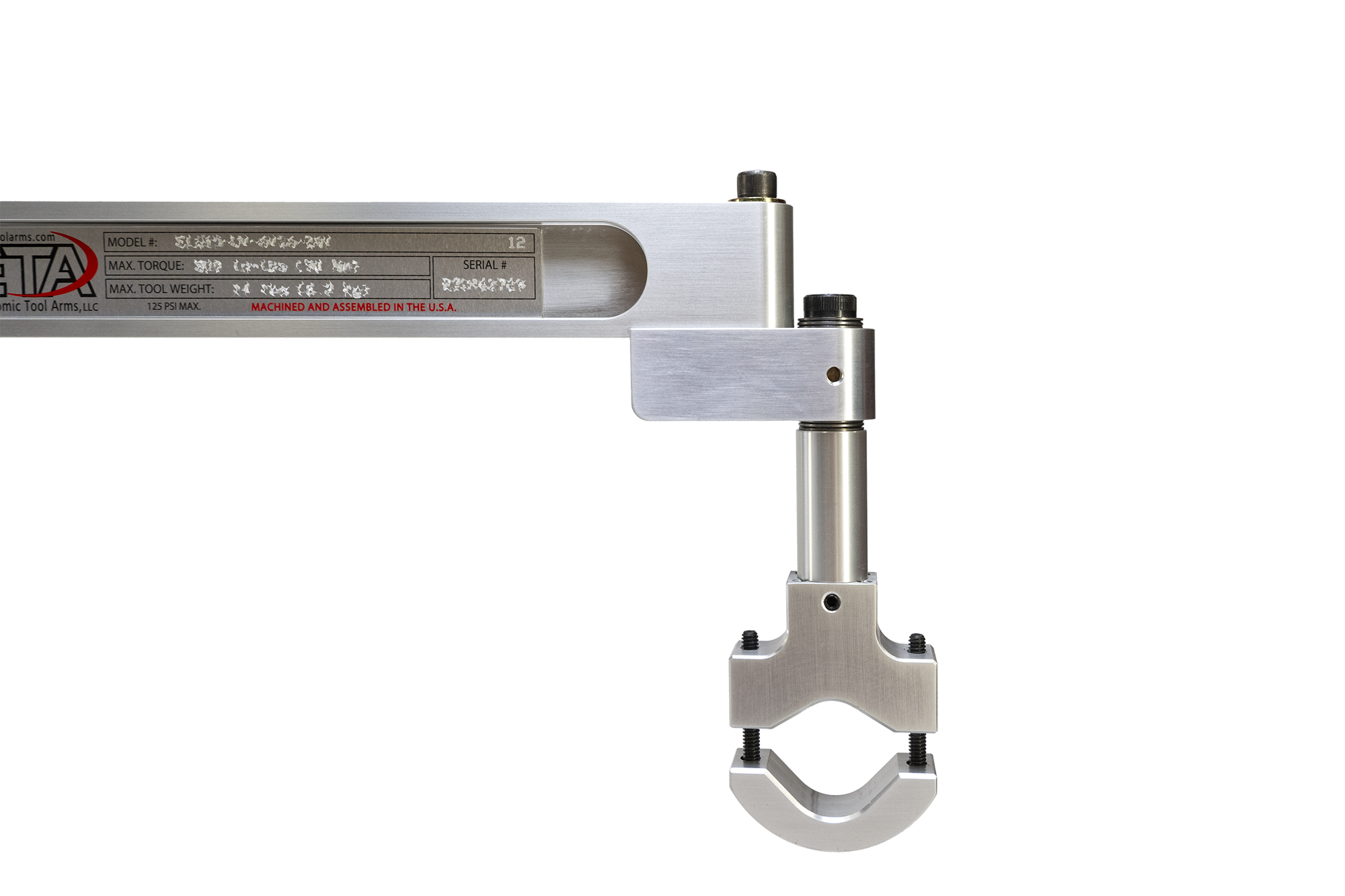

PS

Pistol Spin Horizontal

 For pistol or Inline tool bodies held on the horizontal plane while allowing them to spin sideways for axial alignment with fastener.

Tool Holder Weight

1.5 lbs (0.7 Kg)

More Information
'}}

PT

Pistol Tilt +/- Angles off Horizontal

For pistol or Inline tools held in a basic horizontal attitude. Allows tool to tilt +/- 20 degrees from the horizontal plane, and spin sideways for axial alignment with fastener.

Tool Holder Weight

1.9 lbs (0.9 Kg)

More Information
'}}

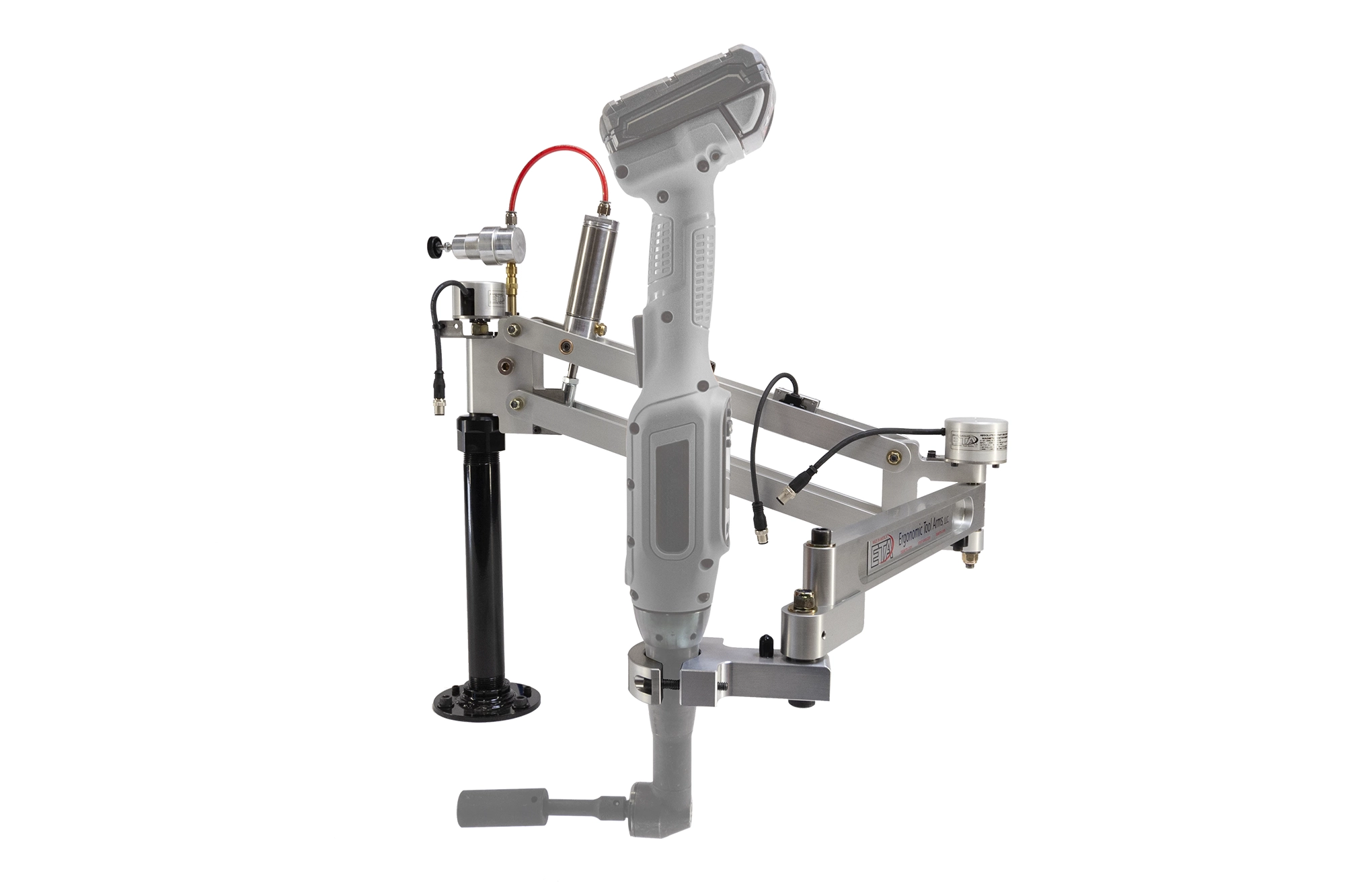

SRA

Simple Right Angle

For right angle tools, fastening horizontally with handle upward. Allows tool to swing freely 280 degrees for easy axial alignment with your fasteners.

Tool Holder Weight

1.5 lbs (0.7 Kg)

More Information
'}}

RAH

Right Angle Horizontal

For Right Angle tools driving fasteners horizontally. Set screw allows 12 different handle positions.

Tool Holder Weight

2.3 lbs (1 Kg)

More Information
'}}

RAHV

Right Angle Horizontal and Vertical

For driving vertical fasteners and horizontal fasteners in the same work zone using the same right angle tool. Set screw allows 12 different handle positions.

Tool Holder Weight

3.75 lbs (1.7 Kg)

More Information
'}}

IPHV

In-Line or Pistol Horizontal and Vertical

For driving vertical fasteners and horizontal fasteners in the same work zone using the same Inline or Pistol tool.

Tool Holder Weight

3.2 lbs (1.5 Kg)

More Information
'}}

FR

Flip and Rotate

2 axis swivel for Inline or Pistol tools fastening in any direction without torque reaction.

Tool Holder Weight

1.7 lbs (0.8 Kg)

More Information
'}}

FRS

Flip and Rotate with Stops

The same mechanics as the FR with the addition of stop plates on both axis allowing adjustment of rotational limits.

Tool Holder Weight

2.1 lbs (0.95 Kg)

More Information
'}}

EXUV

Extended Universal Vertical

For fastening Vertically with any inline tool. Similar to UV-TH with 3″ of additional reach.

Tool Holder Weight

1.3 lbs (0.6 Kg)

More Information
'}}

LDUV

Large Diameter Universal Vertical

This Vertical holder is for larger tools and other large components 2.0″ (50.8mm) to 4.0″ (101.6mm) in diameter.

Tool Holder Weight

1.3 lbs (0.6 Kg)

More Information
'}}

NB

Needle Bearing – Rotating

For Inline, Inline offset, Crows Foot and Right Angle Tools; enabling them to rotate in place.

Tool Holder Weight

2.6 lbs (1.2 Kg)

More Information
'}}

NBBR

Needle Bearing – Rotating with Hydraulic Brake

For Inline, Inline offset, Crows Foot and Right Angle Tools; enabling them to rotate in place.

Tool Holder Weight

3.6 lbs (1.6 Kg)

More Information
'}}

ASG

ASG SP2500 Adapter

ETA adapter for Vertical Fastening with X-PAQ Tools. The mounting loop #ASG-AC2500-TML, purchased from ASG, fits directly onto this adapter using two 1/4-20 Cap Screws.

Tool Holder Weight

0.6 lbs (0.3 Kg)

More Information
'}}

QXP

For IR QX DC Pistol

Handle and Comfort Trigger spin 360 degrees for improved ergonomics. Works with QXC, QXX and QXN models. Makes QX Pistol work like an inline for vertical fastening.

Tool Holder Weight

4.4 lbs (2 Kg)

More Information
'}}

QE4

For IR QE4 Inline with 2-bolt tool flange

For Vertical Fastening with IR Inline DC Tools that have 2-bolt Flanges

Tool Holder Weight

0.8 lbs (0.4 Kg)

More Information
'}}

QE6

For IR QE6 Inline with 2-bolt tool flange

For Vertical Fastening with IR Inline DC Tools that have 2-bolt Flanges.

Tool Holder Weight

0.8lbs (0.4 Kg)

More Information
'}}

QE8

For IR QE8 Inline with 2-bolt tool flange

For Vertical Fastening with IR Inline DC Tools that have 2-bolt Flanges.

Tool Holder Weight

0.8 lbs (0.4 Kg)

More Information
'}}

ST61

Vertical Adapter for Atlas Copco Inline Screwdrivers and Nutrunners

For Vertical Fastening with Reaction Bar #4210 2134 02 typically included with applicable Atlas tools.

Tool Holder Weight

1.0 lbs (0.45 Kg)

More Information
'}}
